Perfactory 3 Mini Multi Lens

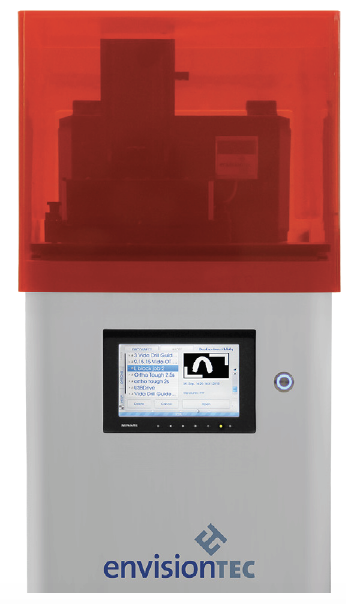

EnvisionTEC’s Perfactory® Mini Multi Lens 3D Printer is a low cost, easy maintenance and user friendly 3D Rapid Prototype Manufacturing System. Using state of the art Digital Light Processing® (DLP) technology from Texas Instruments®, the Perfactory System produces the finest detail in the shortest period of time to create 3D models that range from the conceptual to the fully functional.

Benefits:

  • Build speed in constant through the build up to 1” (25 mm) at 0.0039” (100 µm) voxel thickness
  • Economic material use with no vat
  • Very few moving parts and minimal consumable components make the system user serviceable
  • Quick and easy material changeover


Machine Specifications

  • Choice of 3 lens sizes, 60 mm, 75 mm, or 85 mm
  • Choice of standard or increased productivity models
  • Build envelope, native voxel size and ERM voxel size dependent on lens and model chosen. Please see data sheet for more details.
  • Dynamic Voxel Thickness Z**: 0.0006” (15 µm) to 0.0006” (150 µm)
