Mesopore

AUTOMATIC SORPTION ANALYSIS OF UP TO FOUR SAMPLES

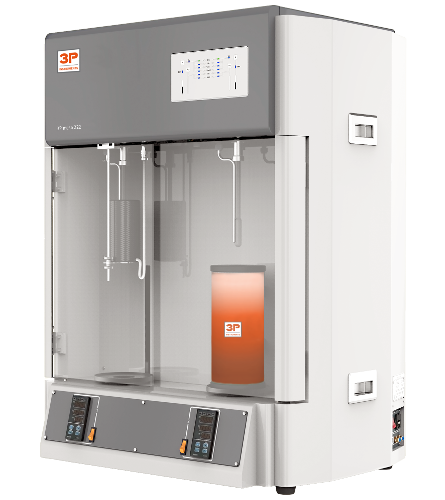

The most commonly used and most reliable method for measuring isotherms is the static volumetric method of gas adsorption. The 3P meso series follows the principle of independent analysis ports for determination of meso and macropores from 2 up to more than a few 100 nm. One, two and four port systems are available to meet optimal client demands. Designed for the field of quality assurance and/or production control, these analyzers provide an independent dosing manifold equipped with 1000 Torr transducers for each measurement port. Each of the measurement stations include the capability to degas the sample in-situ (up to 400 °C), this principle avoids sample contamination during sample transfer from separate degassers to the analysis port without making any further precautions. However, for materials where this effect are insignificant, external degassers are available as well.
Meso 112


Meso 222



Meso 400
