Electrical Properties Testing
TF Analyzer modular design concept
Based on the idea of a modular and flexible designed measurement system, aixacct created the TF Analyzer platforms. To close the gap between pure electrical testing with reduced requirements and high specialized testing solutions for production control aixacct developed a variety of Analyzer platforms, ranging from TFA1000 to TFA3000.
In 1999, the very first TF Analyzer allowed our customers to carry out measurements on 300 nm pads. This made it possible to precisely measure storage structures for the first time, all thanks to the compensation method developed by aixACCT Systems. This method enables users to differentiate currents created through parasitic capacities like a supply cable from the actual switching currents of the material.

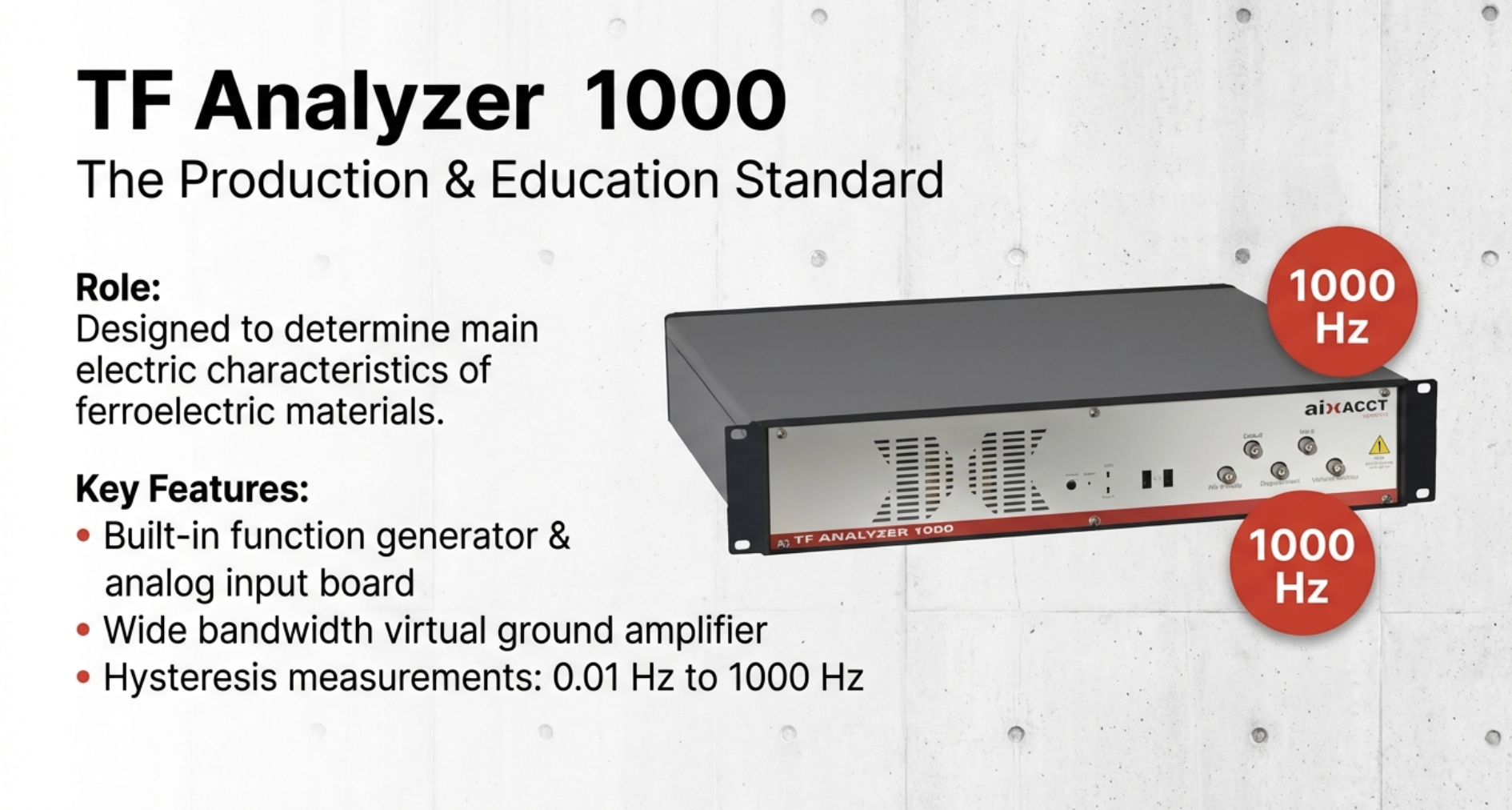

TF Analyzer 1000: Entry-Level Characterization
The TF Analyzer 1000 is an integrated ferroelectric test system designed to determine the primary electrical characteristics of ferroelectric materials. It features a built-in function generator, an analog input board, and a wide bandwidth virtual ground amplifier with a driving unit.

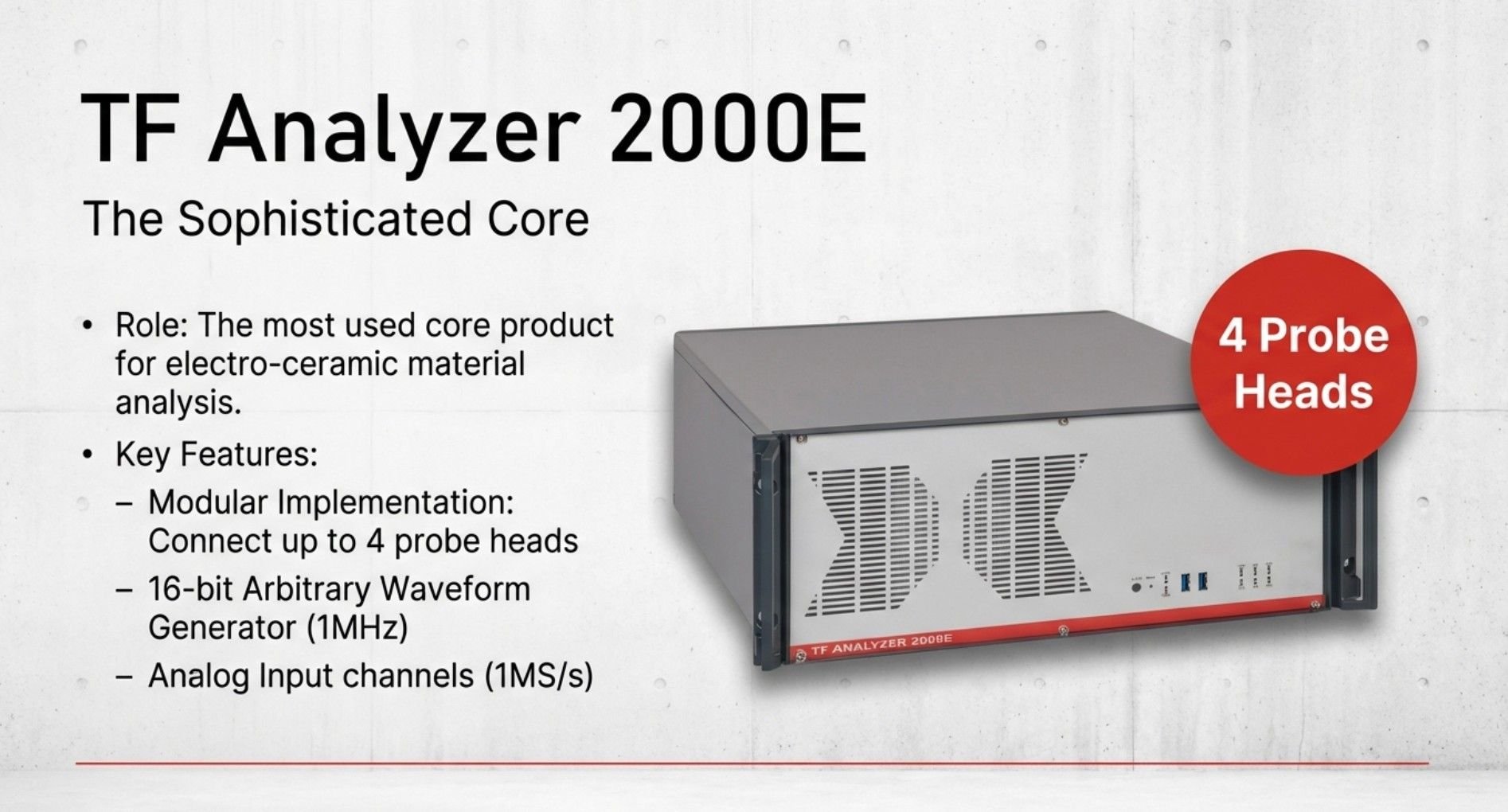

TF Analyzer 2000E: Sophisticated Modular System
The TF Analyzer 2000E is positioned as one of the most sophisticated analyzers for electro-ceramic materials and devices. It serves as the core product for aixPES systems. Its architecture is based on a modular concept where four different probe heads, each representing a distinct characterization method, can be connected to the same basic unit.

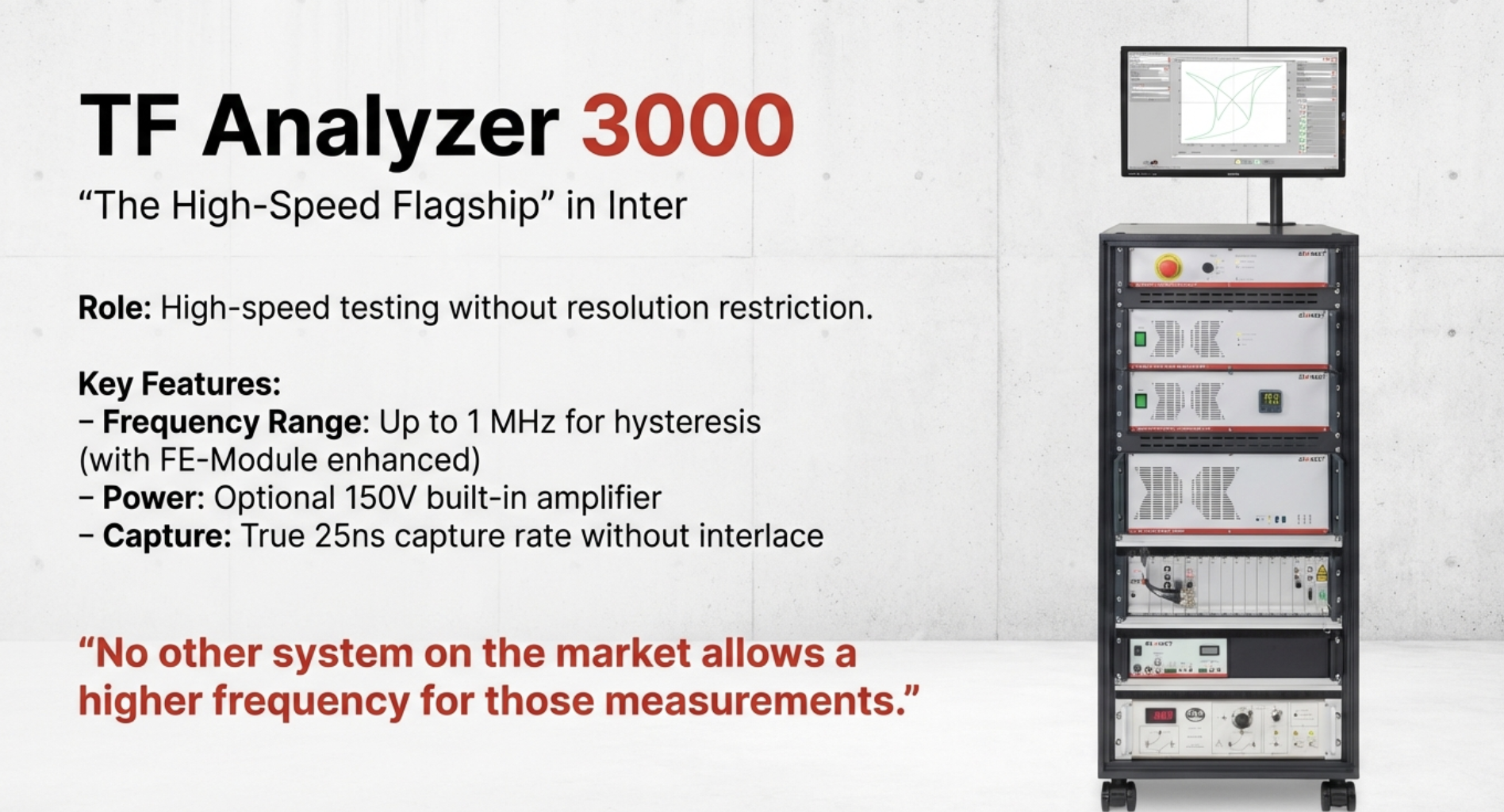

TF Analyzer 3000: Flagship High-Speed Testing
The TF Analyzer 3000 is the flagship of the series, designed for dedicated high-speed testing of electro-ceramic materials. It is utilized in High Speed PES and CMA systems. Like the 2000E, it utilizes a modular four-probe-head design but offers the highest frequency ranges available on the market without restricting input resolution.
