The Accurion i4 is a state-of-the-art active vibration isolation system. It is ideal for isolating high-resolution measurement equipment from building vibrations and other disturbances, while providing active compensation in all six degrees of freedom. The isolation effect starts at 0.6 Hz, achieving the maximum performance of -40 dB at 10 Hz, where 99.0% of the vibration is isolated. In addition to the extremely short settling time, the lack of low-frequency resonance proves a major advantage, whereas passive isolators amplify vibrations instead of isolating them.

Active Vibration Isolation Desktop Unit

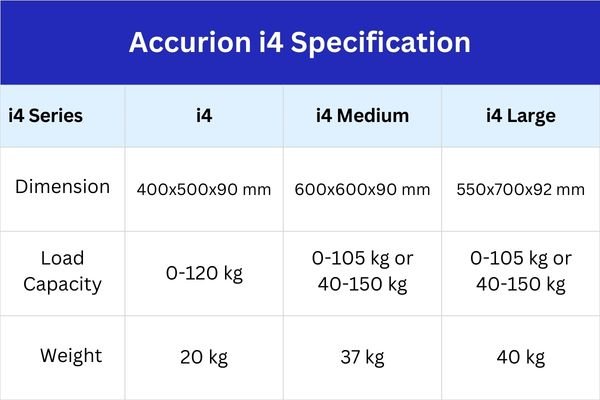

The Accurion i4 is a state-of-the-art active benchtop vibration isolation system. Aside from its low-profile carbon design, the Accurion i4 has expanded application capabilities. Main features are the automated transport locking mode and fully automatic load adjustment which makes the handling extremely straightforward.

The Nano series combines high-end active vibration isolation with ultra-small dimensions and is employed in the isolation of very small and lightweight applications. Its competitive pricing allows the use for educational settings and basic research, like entry-level scanning probe microscopes. The two standard versions of the Nano series consist of an isolator and an external control unit. Both systems are rather lightweight and portable.

The Accurion Nano series consists of two ultra-compact active vibration isolation systems: the Nano 20, the world’s smallest active isolation system, and the slightly larger Nano 30. Both systems are designed for small and lightweight applications.

The Workstation i4 is designed to be used with optical microscopes or microscope/SPM combinations. The isolated surface is surrounded by a scratch-resistant MDF plate, convenient for arm resting or as storage area. Any of the three i4 versions can be integrated into a workstation depending on customer requirements.



The Workstation Vario systems come with a steel frame embedded optical breadboard as working surface. As extensibility, the surrounding frame can be used for the installation of acoustic enclosures. Compared to the Workstation i4, these versions are suitable for supporting larger and heavier applications.
