Servo electric test systems
Servo electric universal test rigs and cylinder units stand out thanks to their high level of control accuracy, large testing strokes, and light infrastructure demands (only an electrical connection). Other advantages include its low noise profile and universal applicability.
POWER EXCENTRIC's capabilities
The POWER EXCENTRIC testing machine is a simple, quality tool for testing with set displacement. The advantage of the test system is its robust and low-maintenance mechanics. Controlling of the test rig is done with a simple PLC system.
Technical highlights and your advantages
- Excentric drive
- Variable testing area with T-channels and easy height adjustments
- Single stage oscillation tests with particularly simple experimental perameters
- PLC control system
- Cost-efficient tools for quallity supervision
- Flexible positioning, requires only a power connection
- Stroke of ± 25 mm
- Dynamic forces up to ± 30 kN

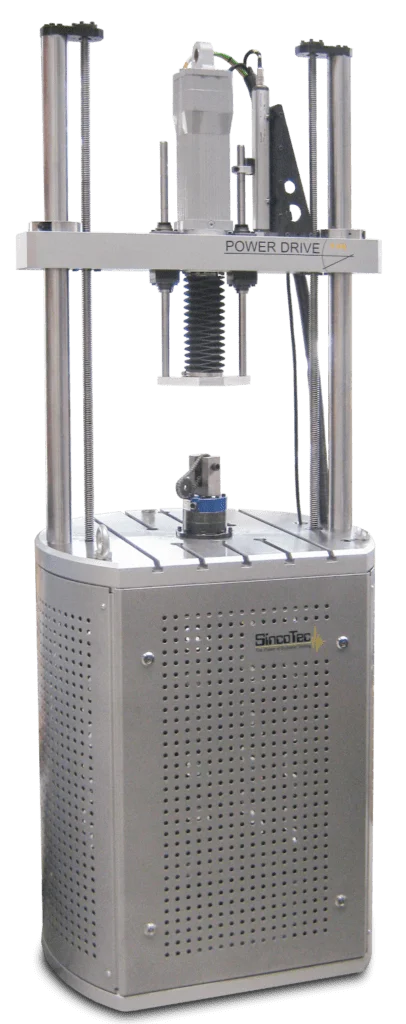

POWER DRIVE's capabilities
The universal, servo-electric testing machine POWER DRIVE distinguishes itself with its application to testing with large strokes.
Elastomer components and resilient materials generally require such testing. The increase in force, precision, and repeatability of the universal, servo electric testing machine POWER DRIVE are significantly better than comparable servo pneumatic test rigs. The combination of the load frame and actuator eliminates the need for a testing field. This design offers an ergonomic working height.
The TestPilot control unit uses CoPilot software to control the force and displacement of the servo drive.
Technical Highlights
- 8 test rig sizes for nominal loads between 500 N and 15 kN
- High testing speeds up to 0.5 m/s
- Designed for single or multiaxial testing
- Integrated displacement transducer ensures highly precise measurement
- Flexible stroke sizes between 50-300 mm
