Universal Testing Machine

Equipped with latest close-loopcontroller technology, extra stiff load frame and maintenance free servo motor drive system, the LE series universal testing systems are engineered to provide exceptional performance in accuracy,repeatability, and reliability. The series offer single column desktop model, dual column desktop model, and floor standing model up to 600kN in capacity.

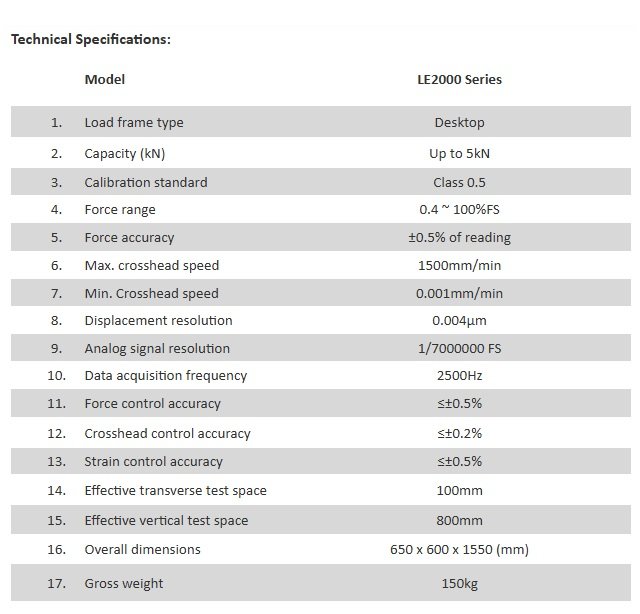

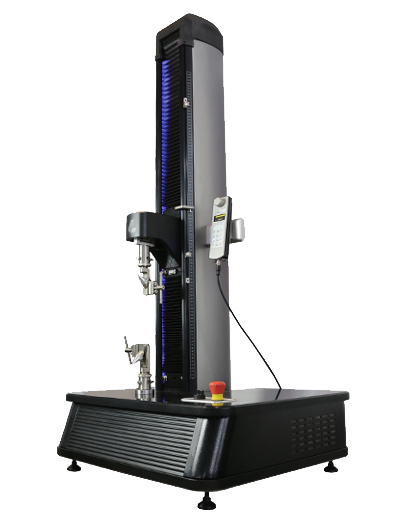

LE2000 Series Single Column

Desktop Model

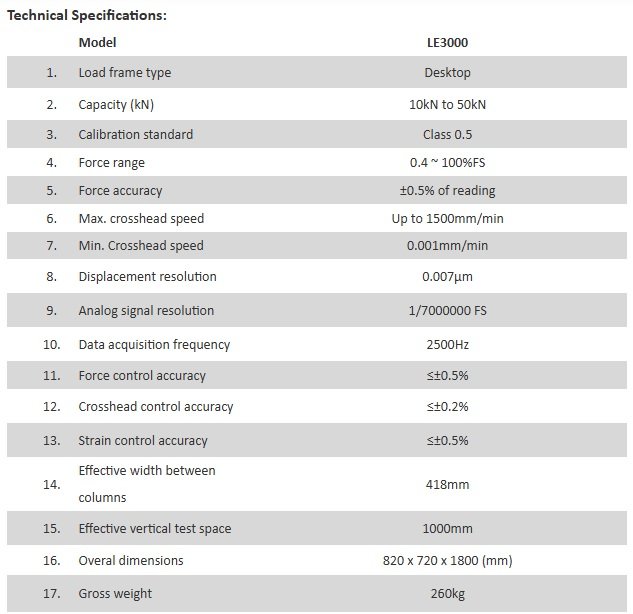

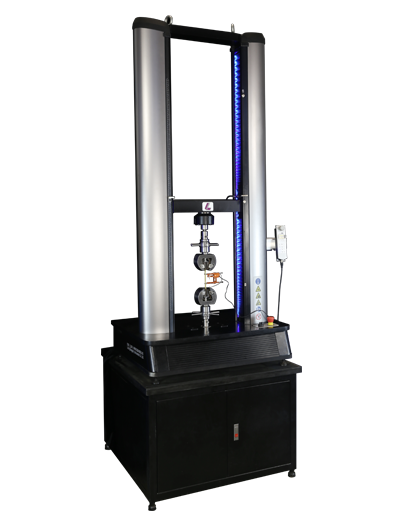

LE3000 Series Dual Column

Desktop Load Frame

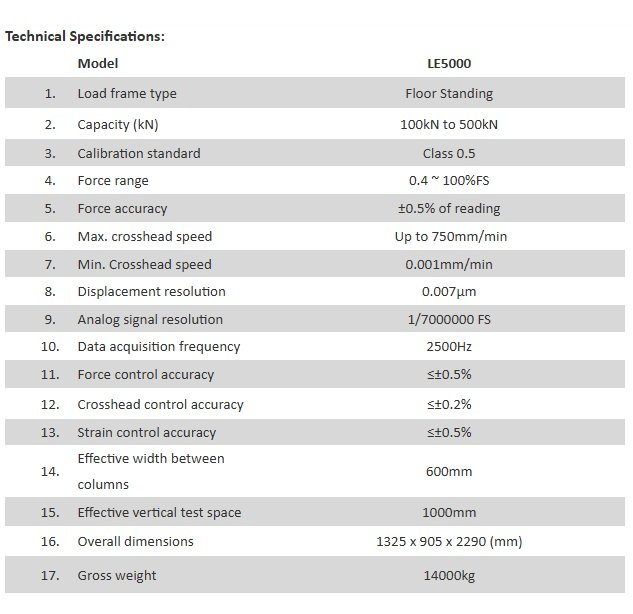

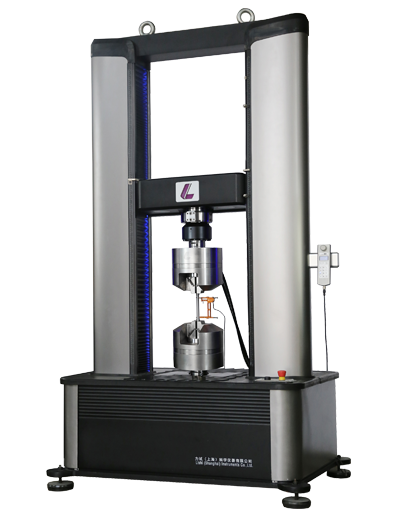

LE5000 Series Floor Standing

Load Frame

Design Features:

Stiff preloaded bearing and precision ball screw column with guidance rod ensures stable crosshead movement and accurate strain results
System status indication LED light strip reminds operators of safe operation
Latest close-loop high performance controller up to 2500Hz data acquisition rate
Proprietary servo motor drive system achieves high speed with little vibration
Loadcell with TEDS self-identification capability
Test safety is ensured with physical limit switches and software overload protection as well as available test space enclosures
Intuitive test software with drag & drop workflow diagram simplifies test setup
Comprehensive post analysis tool and report functions

Design Features:

Stiff preloaded bearing and precision ball screw column with guidance rod ensures stable crosshead movement and accurate strain results
System status indication LED light strip reminds operators of safe operation
Latest close-loop high performance controller up to 2500Hz data acquisition rate
Proprietary servo motor drive system achieves high speed with little vibration
Loadcell with TEDS self-identification capability
Test safety is ensured with physical limit switches and software overload protection as well as available test space enclosures
Intuitive test software with drag & drop workflow diagram simplifies test setup
Comprehensive post analysis tool and report functions

Design Features:

Stiff preloaded bearing and precision ball screw column with guidance rod ensures stable crosshead movement and accurate strain results
System status indication LED light strip reminds operators of safe operation
Latest close-loop high performance controller up to 2500Hz data acquisition rate
Proprietary servo motor drive system achieves high speed with little vibration
Loadcell with TEDS self-identification capability
Test safety is ensured with physical limit switches and software overload protection as well as available test space enclosures
Intuitive test software with drag & drop workflow diagram simplifies test setup
Comprehensive post analysis tool and report functions
