Contact Angle Meter and Tesiometer
Surface & Interface Analysis Instruments
Our advanced Contact Angle Meters and Surface Tensiometers are designed for precise surface and interfacial chemistry analysis. The SL200 Series offers accurate measurement of static and dynamic contact angles, surface free energy, and interfacial tension through a modular, high-resolution optical system and professional CAST software. The A80 Series Tensiometer provides world-class performance in measuring surface and interfacial tension, contact angle of solids, powders, and fibers, as well as surfactant properties such as CMC and wetting behavior. Together, they deliver high accuracy, fast response, and comprehensive analytical capability — the perfect solution for R&D, materials science, and quality control in surface and interface characterization.
Our advanced Contact Angle Meters and Surface Tensiometers are designed for precise surface and interfacial chemistry analysis. The SL200 Series offers accurate measurement of static and dynamic contact angles, surface free energy, and interfacial tension through a modular, high-resolution optical system and professional CAST software. The A80 Series Tensiometer provides world-class performance in measuring surface and interfacial tension, contact angle of solids, powders, and fibers, as well as surfactant properties such as CMC and wetting behavior. Together, they deliver high accuracy, fast response, and comprehensive analytical capability — the perfect solution for R&D, materials science, and quality control in surface and interface characterization.

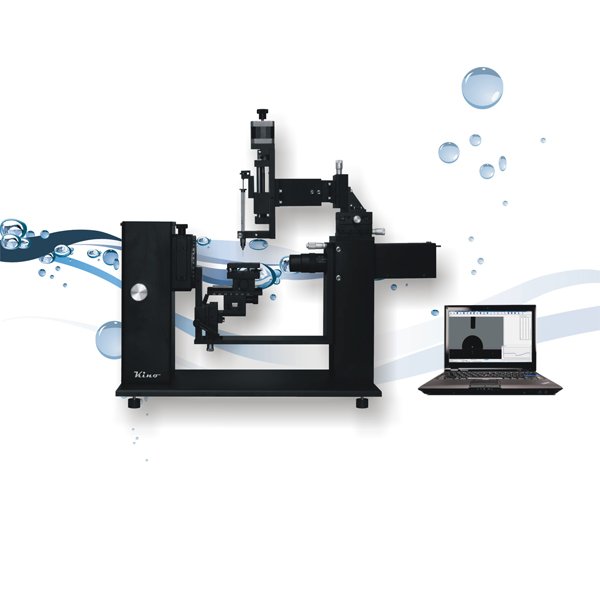

The SL200A/B Series from USA KINO are advanced contact angle measuring instruments designed for high-precision interface chemical analysis. With a modular design offering numerous configurations, the system integrates an optical mechanism, vision system, dosing unit, and CAST 3.0 analytical software. The SL200K Series can measure static and dynamic contact angles, surface free energy (including dispersive, polar, and hydrogen-bond forces), as well as liquid–gas or liquid–liquid interfacial tension and viscoelasticity. Combining accuracy, flexibility, and cost-effectiveness, USA KINO provides professional contact angle meters and interfacial tensiometers ideal for R&D and quality control applications.
Feature
- High-Precision Optical System
Equipped with a high-resolution optical and imaging system for accurate drop shape analysis, ensuring precise and reliable measurements for advanced surface and interface studies. - Modular Design & Flexibility
The modularized design allows for tens of thousands of configuration combinations, providing exceptional flexibility to meet diverse application needs in both solid and liquid interface analysis. - Comprehensive Measurement Capability
Capable of measuring static and dynamic contact angles, surface free energy (SFE), interfacial tension, and liquid viscoelasticity, making it ideal for surface chemistry and material characterization. - Professional Analytical Software (CAST 3.0)
Integrated with CAST 3.0, USA KINO’s professional interface chemistry software, enabling advanced calculations of dispersive, polar, and hydrogen-bond forces, as well as automated reporting and data analysis.

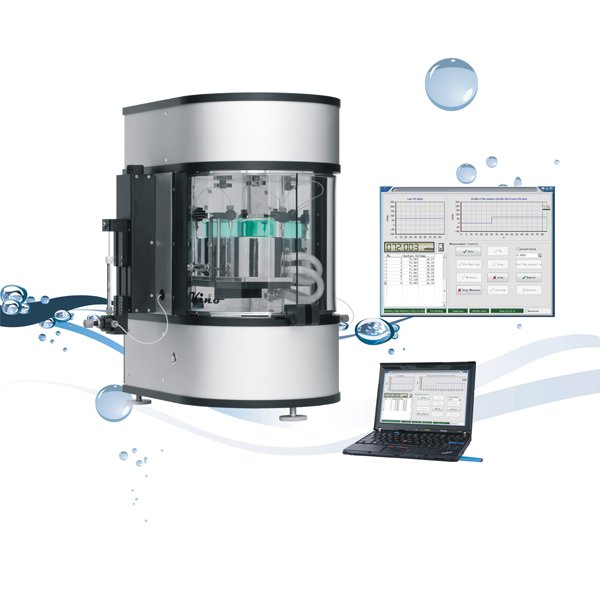

The A80 Series Surface and Interfacial Tensiometer is a high-precision instrument designed for advanced interface chemistry analysis. It measures surface tension (ST), interfacial tension (IFT), static/dynamic contact angles (CA/DCA) of solids, powders, and fibers, as well as critical micelle concentration (CMC) of surfactants and Langmuir-Blodgett films.
Featuring an ultra-fast data update rate of 92 data/s, 0.01 mg microbalance, and 0.007 μm positioning resolution, it offers exceptional accuracy, sensitivity, and stability. Controlled by CAST 1.0 software, the A80 supports multiple measurement methods (Wilhelmy plate, Du Noüy ring, and Young-Laplace correction) and handles high-viscosity materials up to 10,000 cP. With additional modules, it can analyze surface free energy, fiber tension, density, and wetting behavior, providing a comprehensive solution for surface and interfacial research.
Featuring an ultra-fast data update rate of 92 data/s, 0.01 mg microbalance, and 0.007 μm positioning resolution, it offers exceptional accuracy, sensitivity, and stability. Controlled by CAST 1.0 software, the A80 supports multiple measurement methods (Wilhelmy plate, Du Noüy ring, and Young-Laplace correction) and handles high-viscosity materials up to 10,000 cP. With additional modules, it can analyze surface free energy, fiber tension, density, and wetting behavior, providing a comprehensive solution for surface and interfacial research.
